LCP · Lead Frame
Base plates & insert molding
Capacitor bases combining engineering polymers and lead frames. Drawing-led development covers insert position, material selection, contact surfaces and dimensions.
- Application
- Capacitor bases, lead-frame inserts and electrical insulation positioning.
- Representative format

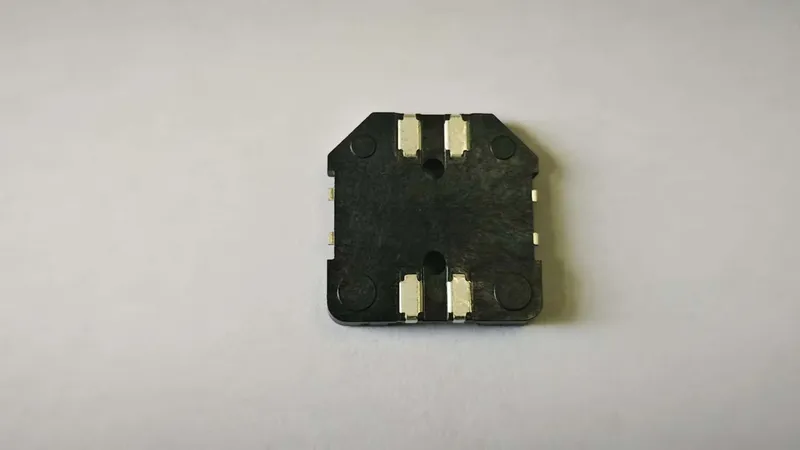

- Representative 10 / 12.5 / 16 / 18 mm-class bases; geometry and supply conditions are reviewed against drawings.
Illustration is not a dimensional or acceptance reference. Geometry, materials and tolerances follow the approved drawing.
View original sample photograph
ENGINEERING REVIEW
Engineering review points
- 01
Polymer grade, metal insert and molding conditions
- 02
Insert position, exposed contacts and assembly dimensions
- 03
Drawing revision, plating requirements and sample approval
DOCUMENTATION
Quality & records
Program-defined inspection
Material, insert-position, dimensional and plating records, as agreed.
Quality & documentationWhat to share for a review
Drawing and revision, material and finish, sample/first-order quantities, target timing and required inspection or compliance records.
